DIN 580 Eye Nut
Thinkwell
| Quantity: | |
|---|---|

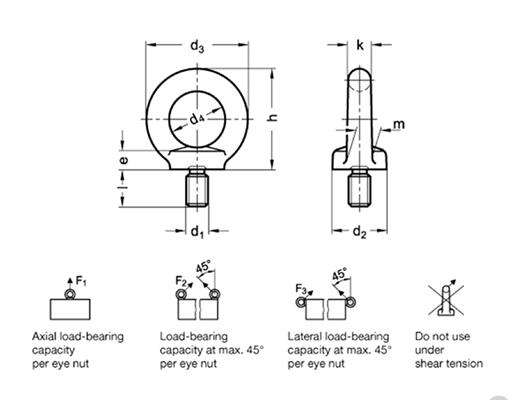

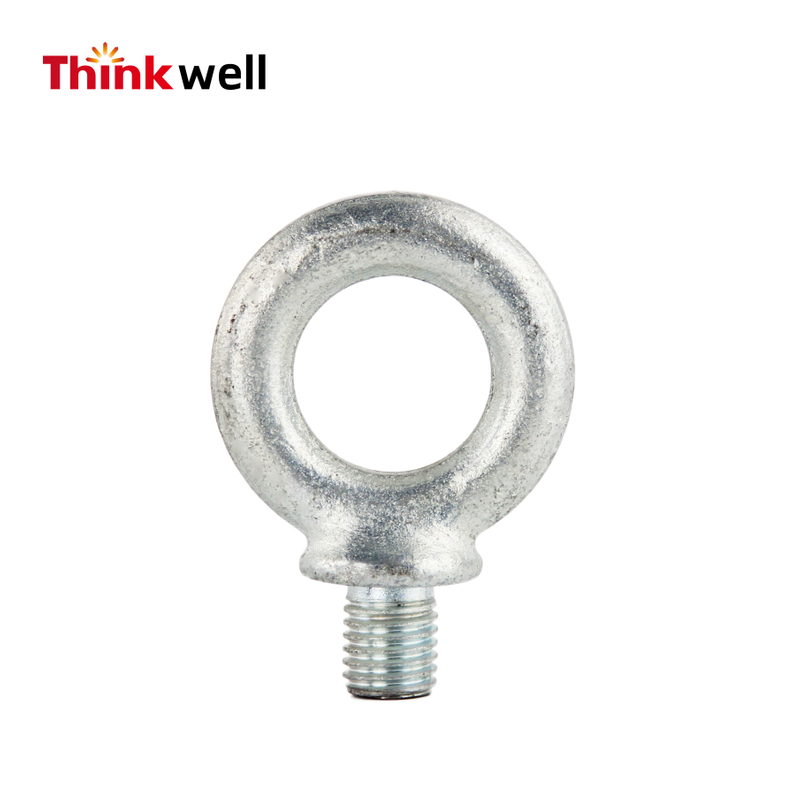

Standard Carbon Steel DIN 580 Eye Bolt
●Available Electro Galvanized Surface Treatment.
●Carbon Steel And Stainless Steel Material
●Long Service Life,ISO Certificated Quality.
●Meet Din Standard.
DIN580 eyebolt screws must be installed vertically on the surface of the workpiece, and the joint surface must be flat and the joint must be tight. The eyebolt screw must be screwed into close contact with the bearing surface, but it is not allowed to be tightened with tools.
Quality Control :
●Material Report For Each Batch.
●Tensile Test Can Be Provided For Each Order
●Inline inspection.
●Welcome 3rd party inspection or test.
Thinkwell Advantages :
●Provide OEM/ODM Service.
●Enough Stock For Most Of Sizes
●Quality Control based on ISO9001 and 12 months warranty.
●Free Samples If Need.
●24 Hours Online Service,Free Time To Contact Us.
●LOW MOQ-100 pcs Each Size.
●Fast Delivery,Most Orders Can Be Deliverd In 2-3 Weeks
| SIZE | WLL(t) | WEIGHT(kg) |
| M6 | 0.14 | 0.05 |
| M8 | 0.14 | 0.059 |
| M10 | 0.23 | 0.109 |
| M12 | 0.34 | 0.182 |
| M14 | 0.49 | 0.286 |
| M16 | 0.7 | 0.286 |
| M20 | 1.2 | 0.449 |
| M22 | 1.5 | 0.672 |
| M24 | 1.8 | 0.872 |
| M27 | 2.5 | 0.881 |
| M30 | 3.6 | 1.662 |
| M33 | 4.3 | 1.725 |
| M36 | 5.1 | 2.656 |
| M39 | 6.1 | 2.806 |
| M42 | 7 | 4.036 |
| M45 | 8 | 4.259 |
| M48 | 8.6 | 6.392 |
| M52 | 9.9 | 6.61 |
| M56 | 11.5 | 6.774 |
| M64 | 16 | 12.421 |
★ More detailed specification,please download catalog for reference.★
