G209 Screw Pin Anchor Shackle
Thinkwell
| Quantity: | |
|---|---|

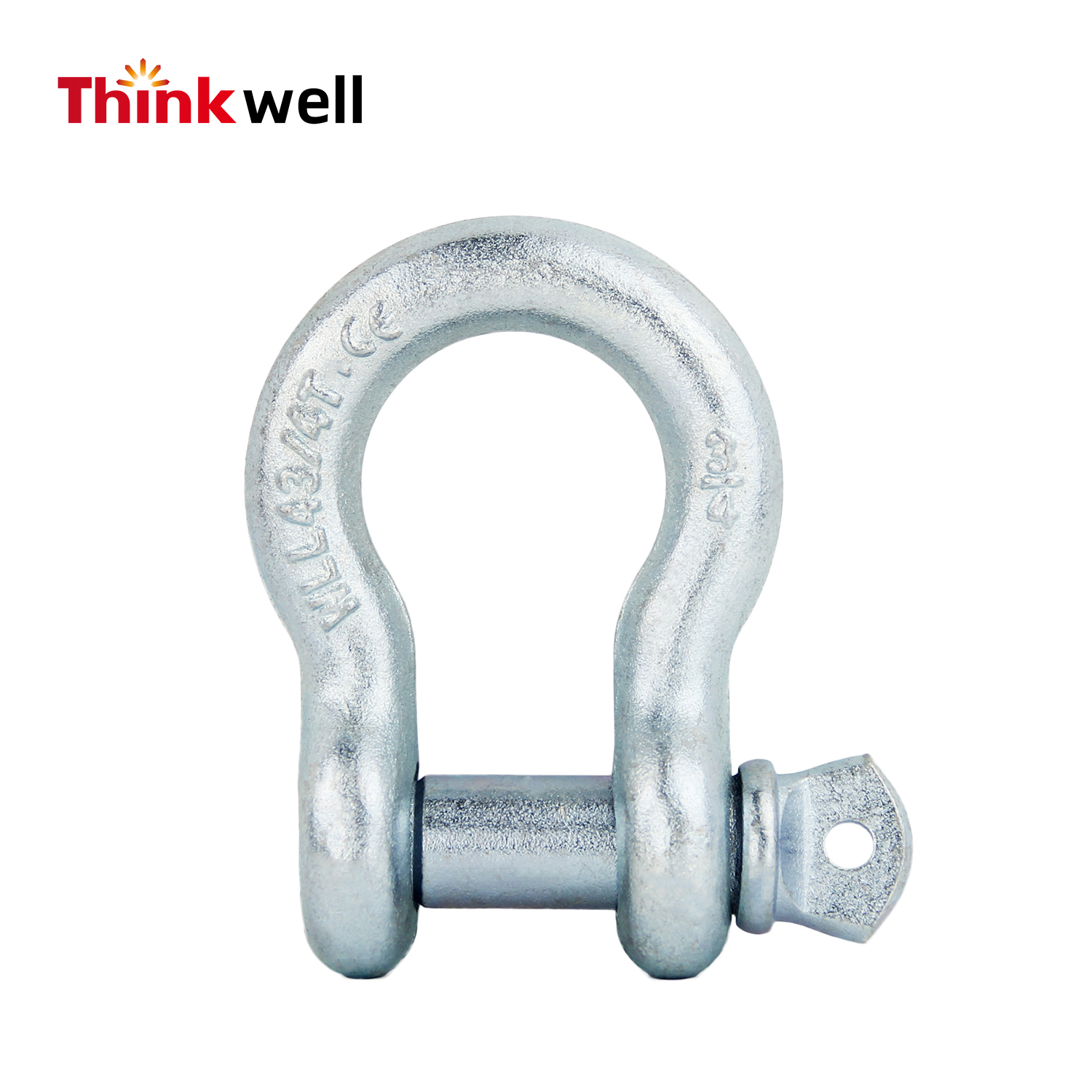

US Type G209 Screw Pin Anchor Shackle
The terms Anchor shackles and bow shackles are usually used interchangeably, as both names refer to a shackle with a larger, rounded “O” shape look. However, a bow shackle typically has a larger, more defined “bow” area than an anchor shackle. The rounded design of anchor shackles and bow shackles allow them to take loads from many directions without developing significant side load. The larger loop shape of an anchor shackle or bow shackle does reduce its overall strength, but it is also able to handle a larger strap.
Basic Information :
Screw Pin Bow Shackle
Materials: Carbon Steel Body and Alloy Steel Shackle Pin
Size:1/4" to 2-1/2".(Other sizes can be customized)
Finish: Zinc Galvanized/Hot Dip Galvanized/Powder Coating
Breaking Strength: 4 times W.L.L and 6 times W.L.L available according to requirement.
Quality Control :
●Material test report for Each Batch.
●Tensile Test for Each Batch.
●Inline inspection.
●Welcome 3rd party inspection or test.
Thinkwell Advantages :
●Provide OEM/ODM service.
●Enough stock for standard items / 7~10 days ready date for under 1000pcs q’ty.
●Strict quality control based on ISO9001 and 12 months warranty.
●Customzied individual packing and customized logo available

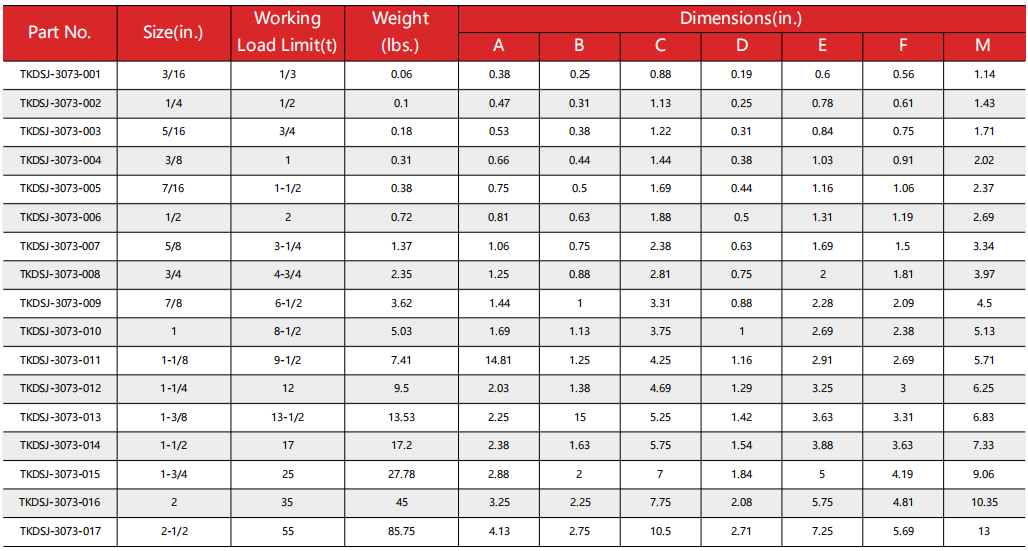

More products detailed specification,please download catalog for reference.
